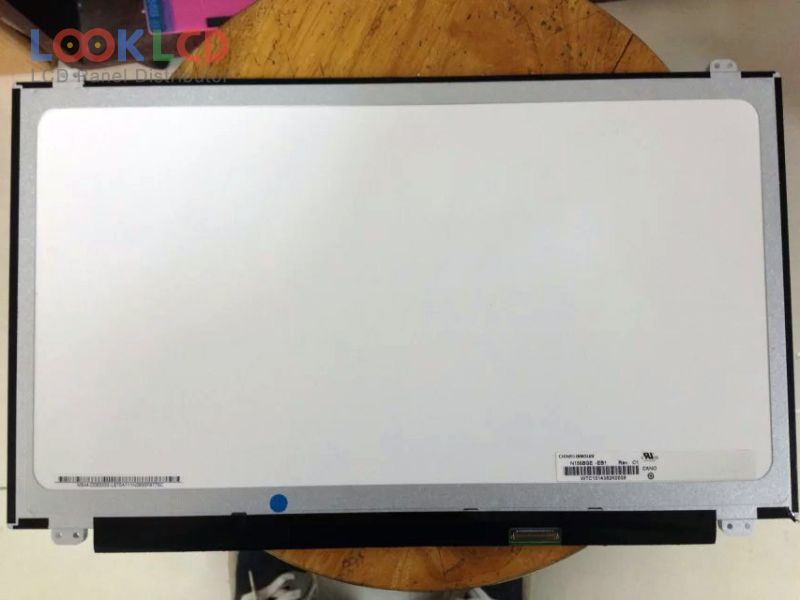

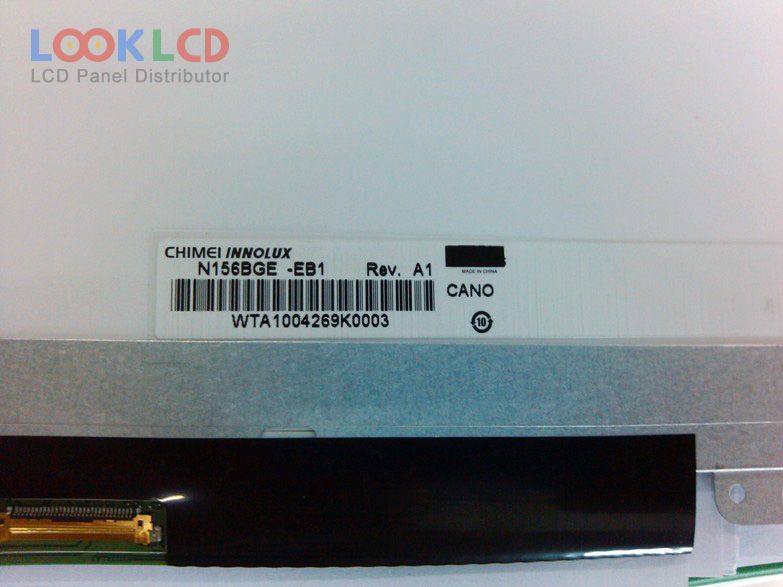

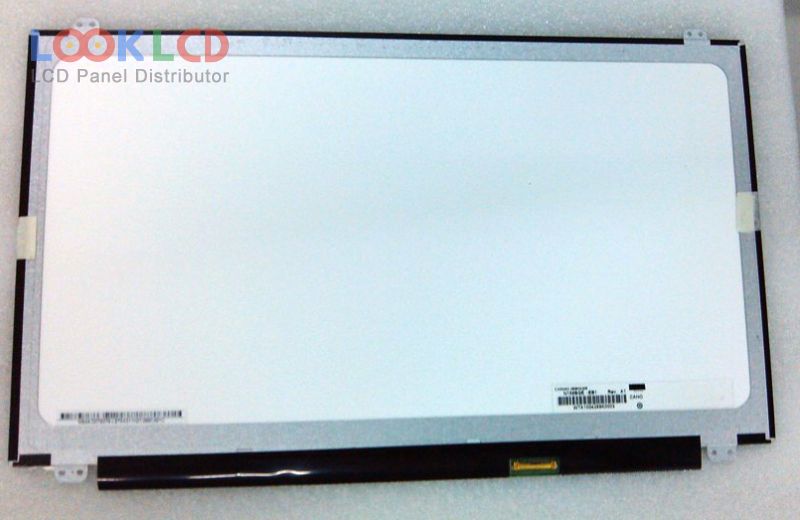

| Broj dijela | N156BGE-EB1 |
| Marka | Innolux |
| Veličina | 15.6 |
| Primjena | NBPC |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 220 |
| CR | 600:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | eDP |
| marka panela | CHIMEI INNOLUX |
| panelni model | N156BGE-EB1 8 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.6 inch |
| rezolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 344.232×193.536 mm |
| obris | 359.5×222.3×3.25 mm |
| stil oblika | Slim (PCBA Flat, Depth ≤3.2mm) |
| površinski | Glare (Haze 0%), Hard coating (3H) |
| svjetlina | 220 cd/m² (Typ.) |
| omjer kontrasta | 600:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193145% |
| vrijeme odziva | 3/8 (Typ.)(Tr/Td) |
| kut gledanja | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | eDP (1 Lane), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
