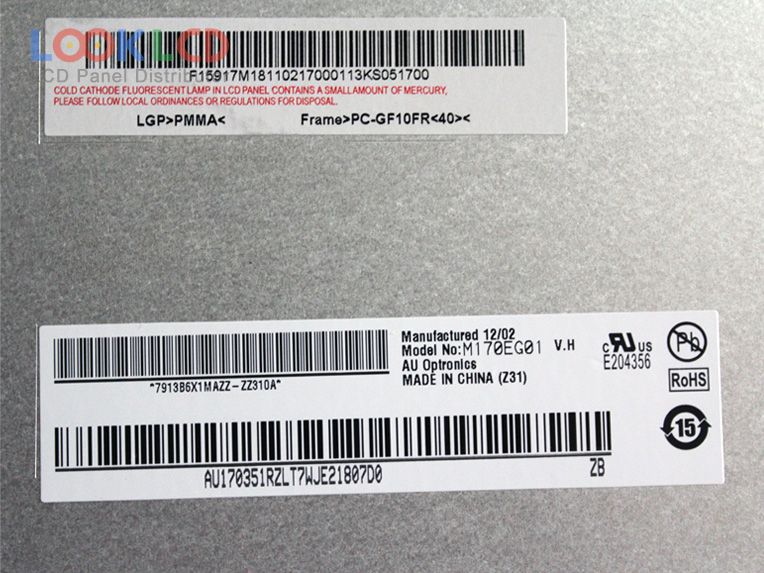

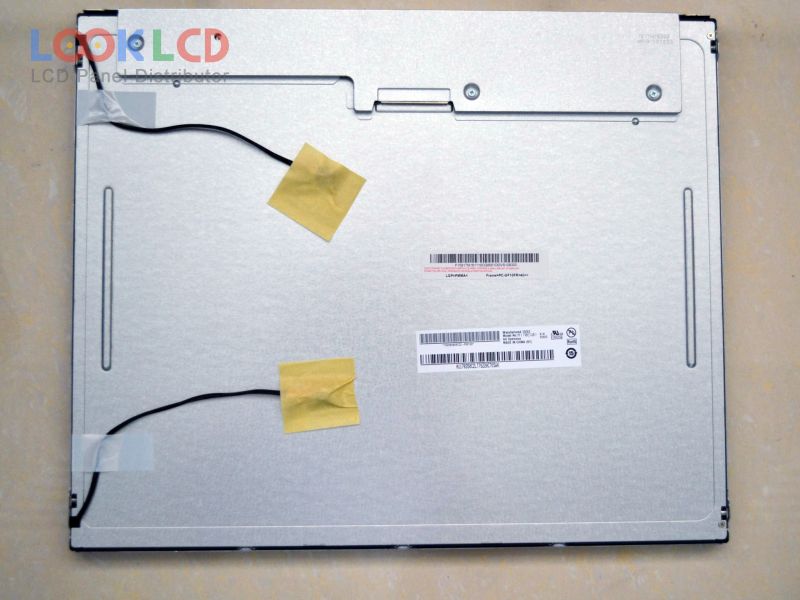

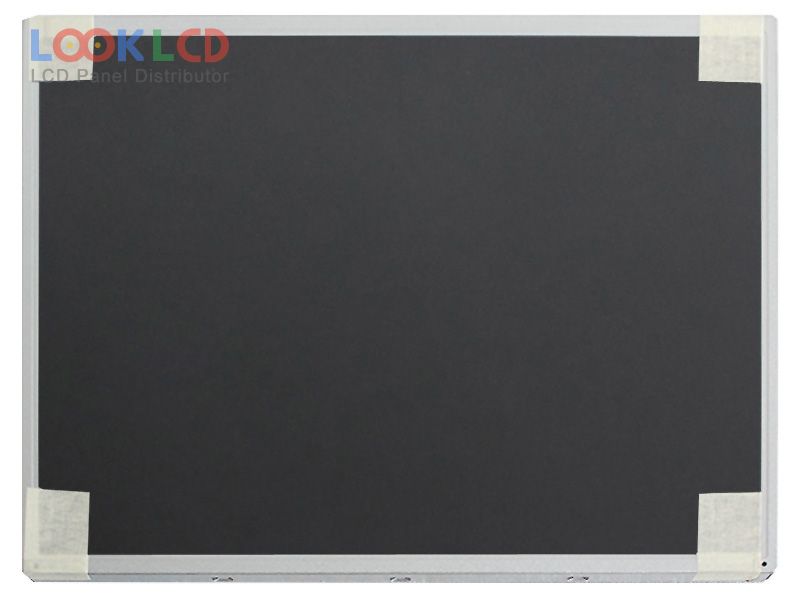

| Broj dijela | M170EG01 VH |
| Marka | AUO |
| Veličina | 17.0 |
| Primjena | DMPC |
| Rezolucija | 1280×1024 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 1000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | AUO |
| panelni model | M170EG01 VH 3 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 17.0 inch |
| rezolucija | 1280(RGB)×1024 , SXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 337.92×270.336 mm |
| obris | 358.5×296.5×15.8 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 1000:1 (Typ.) |
| boje prikaza | 16.7M (6-bit + Hi-FRC), CIE193172% |
| vrijeme odziva | 3.5/1.5 (Typ.)(Tr/Td) |
| kut gledanja | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 2 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (2 ch, 8-bit), 30 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | DMPC |
| M170E5-L08 | Innolux | 17.0 | 1280×1024 |
| M170EG01 V5 | AUO | 17.0 | 1280×1024 |
| M170EG01 V8 | AUO | 17.0 | 1280×1024 |
| M170EG01 V9 | AUO | 17.0 | 1280×1024 |
| M170EG01 VA | AUO | 17.0 | 1280×1024 |
| M170EG01 VD | AUO | 17.0 | 1280×1024 |
| M170EG01 VF | AUO | 17.0 | 1280×1024 |
| M170EG01 VG | AUO | 17.0 | 1280×1024 |
| M170EGE-L20 | Innolux | 17.0 | 1280×1024 |
| M170EP01 V2 | AUO | 17.0 | 1280×1024 |
| LM215WF4-TLA3 | LG Display | 21.5 | 1920×1080 |
| LM230WF5-TLC1 | LG Display | 23.0 | 1920×1080 |
| LTM200KT12 | Samsung | 20.0 | 1600×900 |
| M170ETN01.0 | AUO | 17.0 | 1280×1024 |
| M200HJJ-L20 | Innolux | 19.5 | 1920×1080 |
| M216H1-L01 | Innolux | 21.6 | 1920×1080 |
| M220Z1-L05 | Innolux | 22.0 | 1680×1050 |
| MV215FHM-N30 | BOE | 21.5 | 1920×1080 |
| NL160120BC27-14 | NLT | 21.3 | 1600×1200 |
| T215HVN01.1 | AUO | 21.5 | 1920×1080 |
