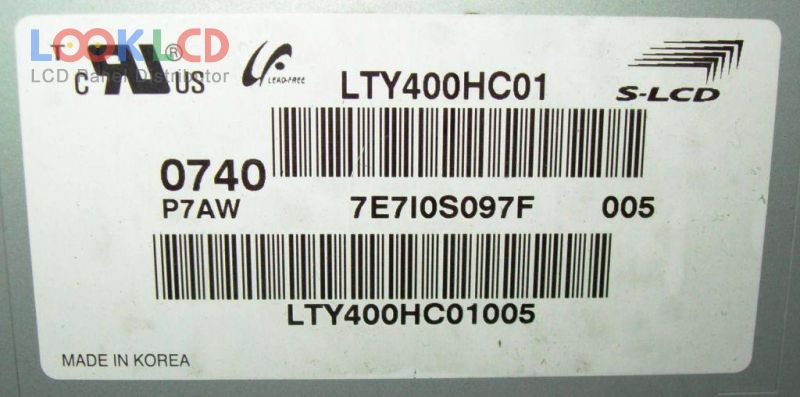

| Broj dijela | LTY400HC01 |
| Marka | Samsung |
| Veličina | 40 |
| Primjena | LCTV |
| Rezolucija | 1920×1080 |
| Sastav | LCM |
| Svjetlina | 550 |
| CR | 2000:1 |
| Boje | 1.07B |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | S-LCD |
| panelni model | LTY400HC01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 40 inch |
| rezolucija | 1920(RGB)×1080 , FHD |
| način prikaza | S-PVA, Normally Black, Transmissive |
| aktivno područje | 885.6×498.15 mm |
| obris | 952×551×54.2 mm |
| površinski | Hard coating (3H) |
| svjetlina | 550 cd/m² (Typ.) |
| omjer kontrasta | 2000:1 (Typ.) |
| boje prikaza | 1.07B (10-bit), CIE193190% |
| vrijeme odziva | 8/6 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 120Hz |
| tip svjetiljke | 20 pcsCCFLEmbedded (Balance board) |
| signalno sučelje | LVDS (4 ch, 10-bit), 92 pins |
| ulazni napon | 12.0V (Typ.) |
| primjena | LCTV |
