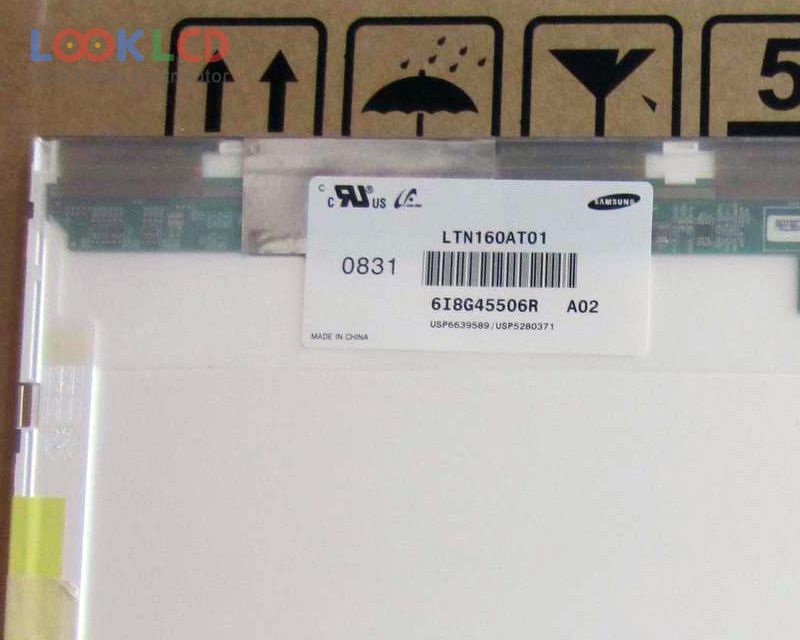

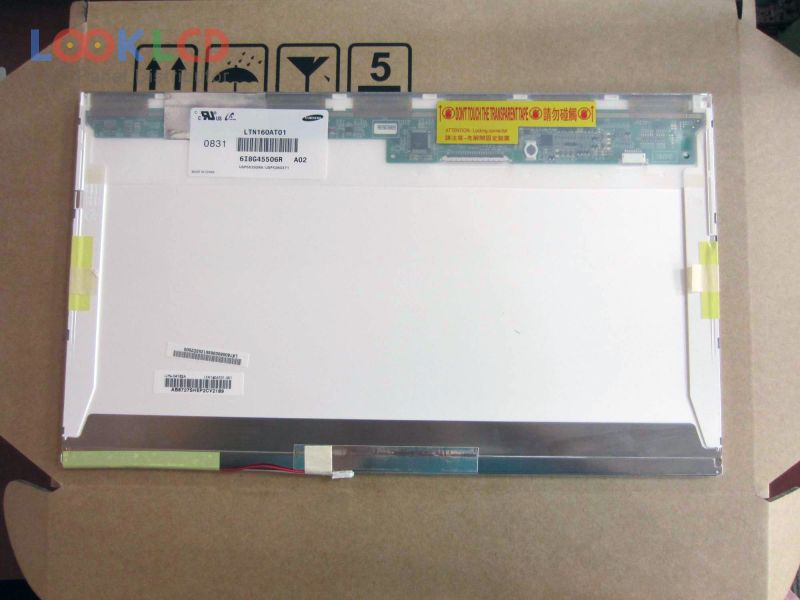

| Broj dijela | LTN160AT01-A02 |
| Marka | Samsung |
| Veličina | 16.0 |
| Primjena | NBPC |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 220 |
| CR | 600:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | SAMSUNG |
| panelni model | LTN160AT01-A02 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 16.0 inch |
| rezolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 353.45×198.72 mm |
| obris | 365×214 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Glare (Haze 0%), Hard coating (3H) |
| svjetlina | 220 cd/m² (Typ.) |
| omjer kontrasta | 600:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193160% |
| vrijeme odziva | 8 (Typ.)(Tr+Td) |
| kut gledanja | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
| LTN160AT01-A02 | Samsung | 16.0 | 1366×768 |
| LTN160AT01-A05 | Samsung | 16.0 | 1366×768 |
| LTN160AT01-F02 | Samsung | 16.0 | 1366×768 |
| LTN160AT01-W01 | Samsung | 16.0 | 1366×768 |
| LTN160AT02-002 | Samsung | 16.0 | 1366×768 |
| LTN160AT02-N01 | Samsung | 16.0 | 1366×768 |
| LTN160AT03-001 | Samsung | 16.0 | 1366×768 |
| LTN160AT03-002 | Samsung | 16.0 | 1366×768 |
| LTN160AT04-N01 | Samsung | 16.0 | 1366×768 |
| LTN160AT06-B01 | Samsung | 16.0 | 1366×768 |
| B101EW01 V1 | AUO | 10.1 | 1280×720 |
| HT140WXB-501 | BOE | 14.0 | 1366×768 |
| HT141WXB-100 | BOE | 14.1 | 1280×800 |
| LP171WX2-A4K7 | LG Display | 17.1 | 1440×900 |
| LQ156D1JW02 | SHARP | 15.6 | 3840×2160 |
| LTM10C321N | TOSHIBA | 10.4 | 1024×768 |
| LTN154X3-L0D | Samsung | 15.4 | 1280×800 |
| LTN156HT01-201 | Samsung | 15.6 | 1920×1080 |
| N121I6-L01 | Innolux | 12.1 | 1280×800 |
| TX38D88VC1GAA | KOE | 15.0 | 1024×768 |
