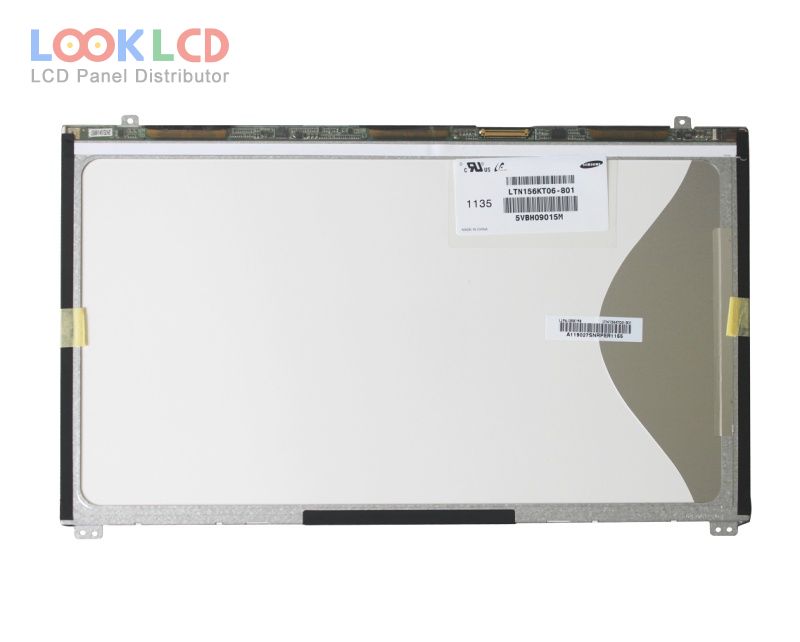

| Broj dijela | LTN156KT06-801 |
| Marka | Samsung |
| Veličina | 15.6 |
| Primjena | NBPC |
| Rezolucija | 1600×900 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 300:1 |
| Boje | 16.2M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | SAMSUNG |
| panelni model | LTN156KT06-801 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.6 inch |
| rezolucija | 1600(RGB)×900 , HD+ |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 344.16×193.59 mm |
| obris | 359.3×222.45×4 mm |
| stil oblika | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| površinski | Antiglare (Haze 25%), Hard coating (3H) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 300:1 (Min.) |
| boje prikaza | 16.2M (6-bit + FRC), CIE193145% |
| vrijeme odziva | 16 (Typ.)(Tr+Td) |
| kut gledanja | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 10S4PWLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (2 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
