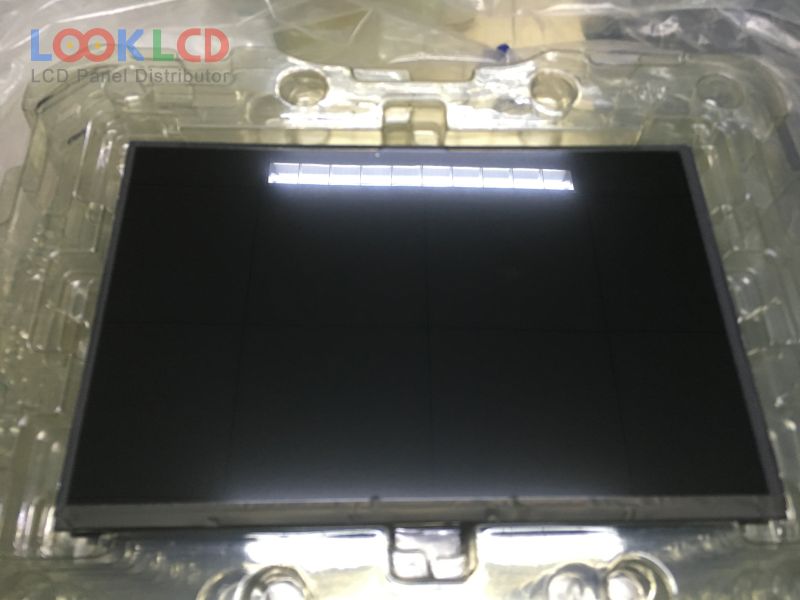

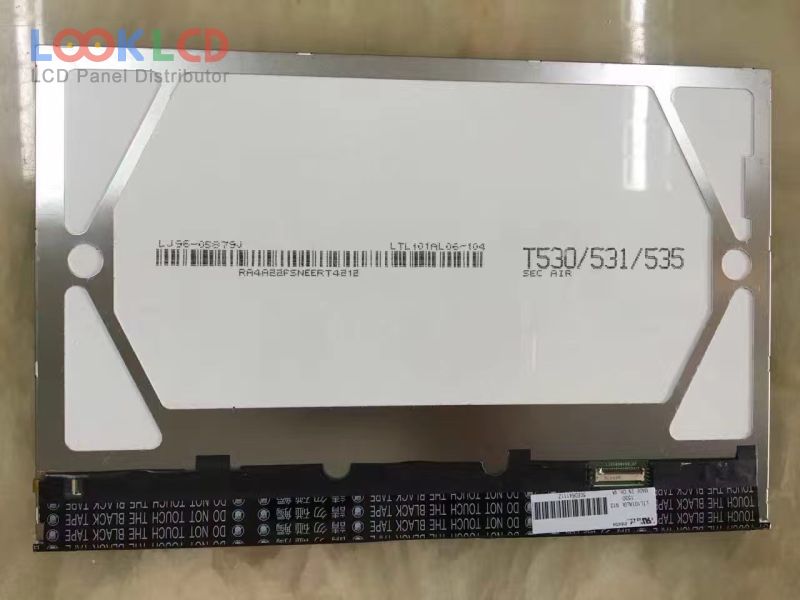

| Broj dijela | LTL101AL06-104 |
| Marka | Samsung |
| Veličina | 10.1 |
| Primjena | PAD |
| Rezolucija | 1280×800 |
| Sastav | LCM |
| Svjetlina | 450 |
| CR | 900:1 |
| Boje | 16.2M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | SAMSUNG |
| panelni model | LTL101AL06-104 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.1 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | PLS, Normally Black, Transmissive |
| aktivno područje | 216.96×135.6 mm |
| obris | 228.21×148.86×4.59 mm |
| površinski | Hard coating (3H) |
| svjetlina | 450 cd/m² (Typ.) |
| omjer kontrasta | 900:1 (Typ.) |
| boje prikaza | 16.2M (6-bit + FRC), CIE193150% |
| vrijeme odziva | 30 (Typ.)(Tr+Td) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 4 stringsWLEDWithout Driver |
| signalno sučelje | LVDS (1 ch, 8-bit), 45 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | PAD |
