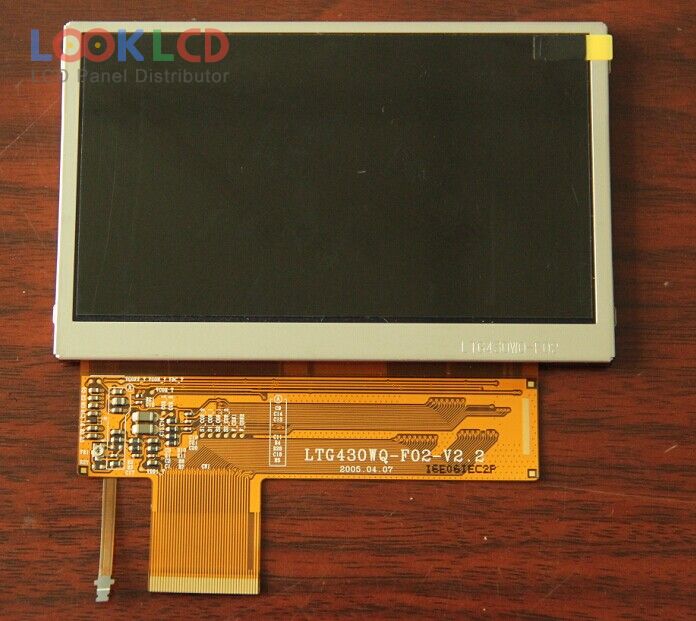

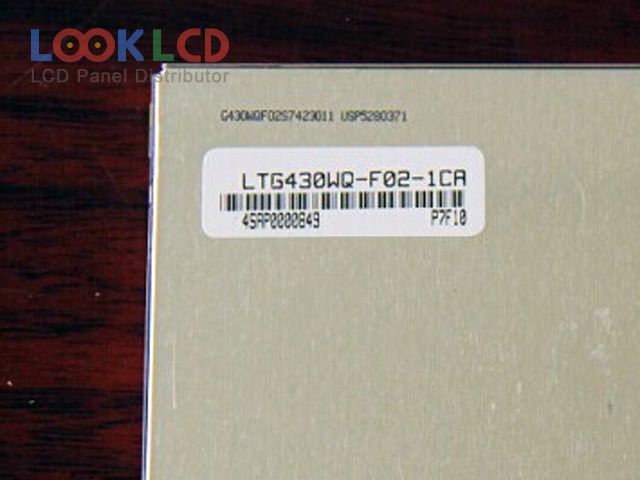

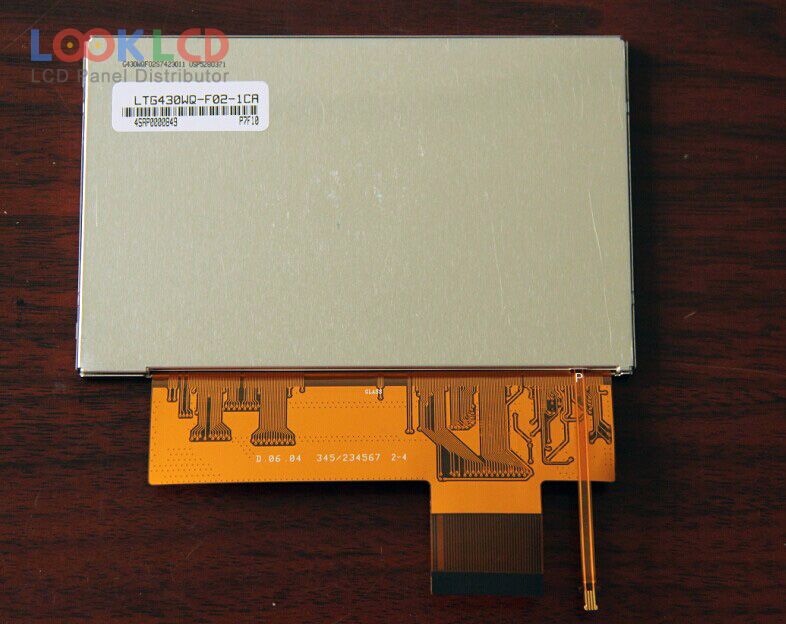

| Broj dijela | LTG430WQ-F02 |
| Marka | Samsung |
| Veličina | 4.3 |
| Primjena | MP4 |
| Rezolucija | 480×272 |
| Sastav | LCM |
| Svjetlina | 165 |
| CR | 400:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | SAMSUNG |
| panelni model | LTG430WQ-F02 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 4.3 inch |
| rezolucija | 480(RGB)×272 , WQVGA |
| način prikaza | PVA, Normally Black, Transmissive |
| aktivno područje | 95.04×53.856 mm |
| obris | 105.5×67.2 mm |
| površinski | Clear |
| svjetlina | 165 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 16.7M (8-bit) |
| vrijeme odziva | 10/15 (Typ.)(Tr/Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 7S1PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 8-bit), 40 pins |
| ulazni napon | 2.5/5.0V (Typ.)(VDD/AVDD) |
| primjena | MP4 |
