| Broj dijela | LTD104EA5W |
| Marka | TOSHIBA |
| Veličina | 10.4 |
| Primjena | NBPC |
| Rezolucija | 1024×768 |
| Sastav | LCM |
| Svjetlina | 180 |
| CR | 100:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | Toshiba Matsushita |
| panelni model | LTD104EA5W |
| vrsta panela | LTPS TFT-LCD , LCM |
| veličina ploče | 10.4 inch |
| rezolucija | 1024(RGB)×768 , XGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 210.4×157.8 mm |
| obris | 237.7×173.2×4.9 mm |
| površinski | |
| svjetlina | 180 cd/m² (Typ.) |
| omjer kontrasta | 100:1 (Min.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 50/50 (Max.)(Tr/Td) |
| kut gledanja | |
| frekvencija | 60Hz |

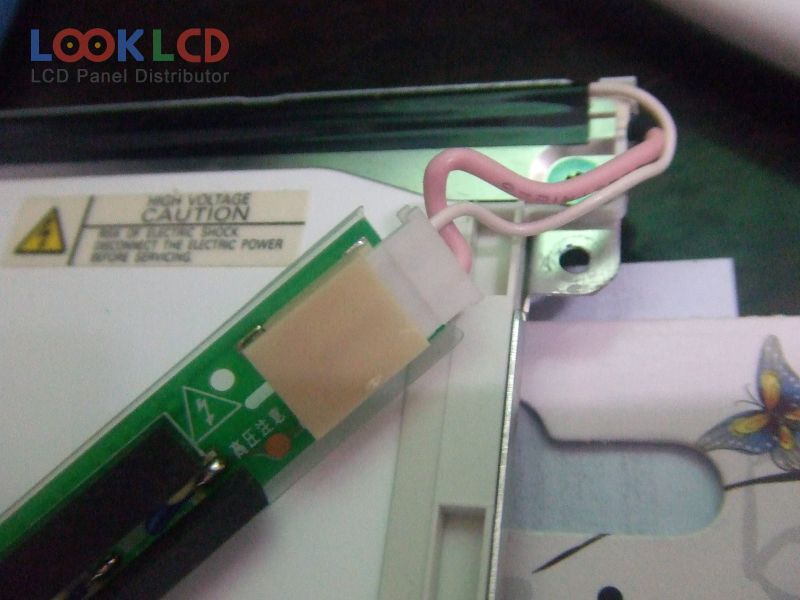

| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 14 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
