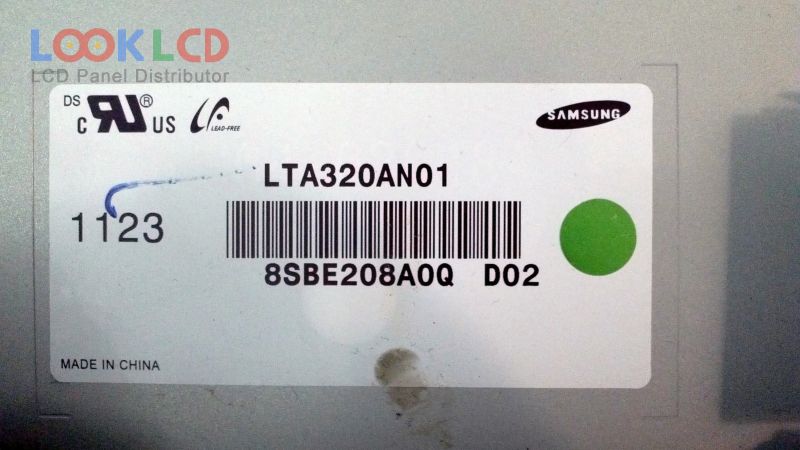

| Broj dijela | LTA320AN01-D |
| Marka | Samsung |
| Veličina | 31.5 |
| Primjena | LCTV |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 4000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | SAMSUNG |
| panelni model | LTA320AN01-D |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 31.5 inch |
| rezolucija | 1366×768(RGB) , WXGA |
| način prikaza | PVA, Normally Black, Transmissive |
| aktivno područje | 697.685×392.256 mm |
| obris | 734.4×430.3 mm |
| površinski | Antiglare (Haze 7%), Hard coating (3H) |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 4000:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193168% |
| vrijeme odziva | 20 (Typ.)(G to G) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 8-bit), 30 pins |
| ulazni napon | 12.0V (Typ.) |
| primjena | LCTV |
