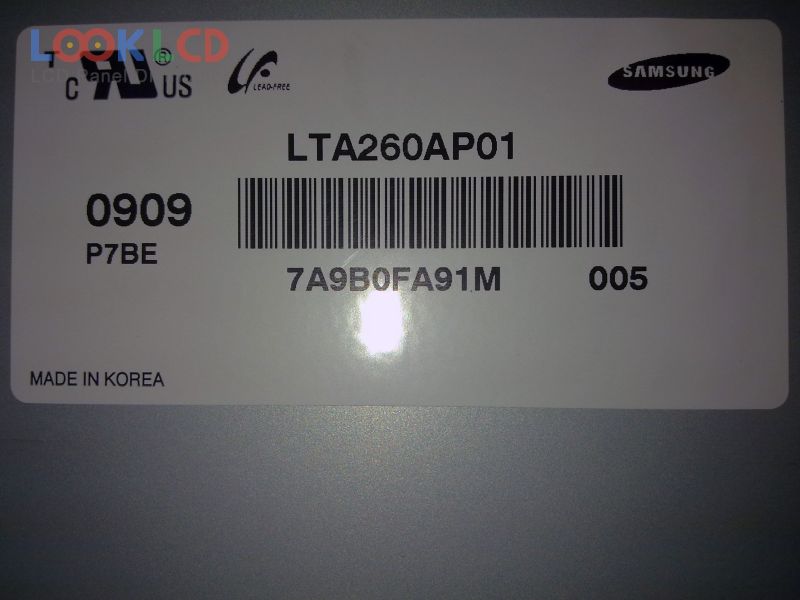

| Broj dijela | LTA260AP01 |
| Marka | Samsung |
| Veličina | 26.0 |
| Primjena | LCTV |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 450 |
| CR | 2000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | SAMSUNG |
| panelni model | LTA260AP01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 26.0 inch |
| rezolucija | 1366×768(RGB) , WXGA |
| način prikaza | APVA, Normally Black, Transmissive |
| aktivno područje | 575.769×323.712 mm |
| obris | 626×373×50 mm |
| površinski | Antiglare (Haze 14%), Hard coating (3H) |
| svjetlina | 450 cd/m² (Typ.) |
| omjer kontrasta | 2000:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193172% |
| vrijeme odziva | 8 (Typ.)(G to G) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 5 pcsCCFLEmbedded (Inverter) |
| signalno sučelje | LVDS (1 ch, 8-bit), 30 pins |
| ulazni napon | 12.0V (Typ.) |
| primjena | LCTV |
