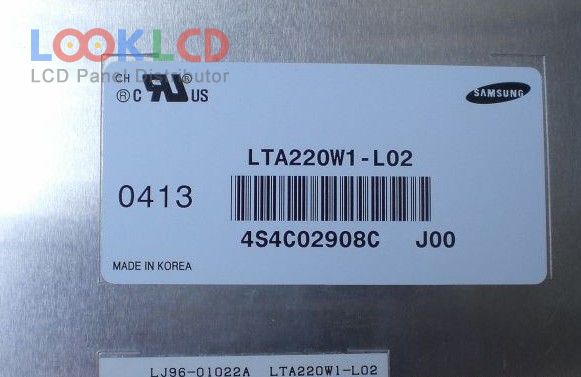

| Broj dijela | LTA220W1-L02 |
| Marka | Samsung |
| Veličina | 22.0 |
| Primjena | LCTV |
| Rezolucija | 1280×720 |
| Sastav | LCM |
| Svjetlina | 450 |
| CR | 500:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | SAMSUNG |
| panelni model | LTA220W1-L02 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 22.0 inch |
| rezolucija | 1280(RGB)×720 , WXGA |
| način prikaza | PVA, Normally Black, Transmissive |
| aktivno područje | 487.58×274.32 mm |
| obris | 525.6×307.9 mm |
| površinski | Antiglare (Haze 44%), Hard coating (3H) |
| svjetlina | 450 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 16.7M (8-bit) |
| vrijeme odziva | 15/8 (Typ.)(Tr/Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 8 pcsCCFLEmbedded (Inverter) |
| signalno sučelje | LVDS (1 ch, 8-bit), 20 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | LCTV |
