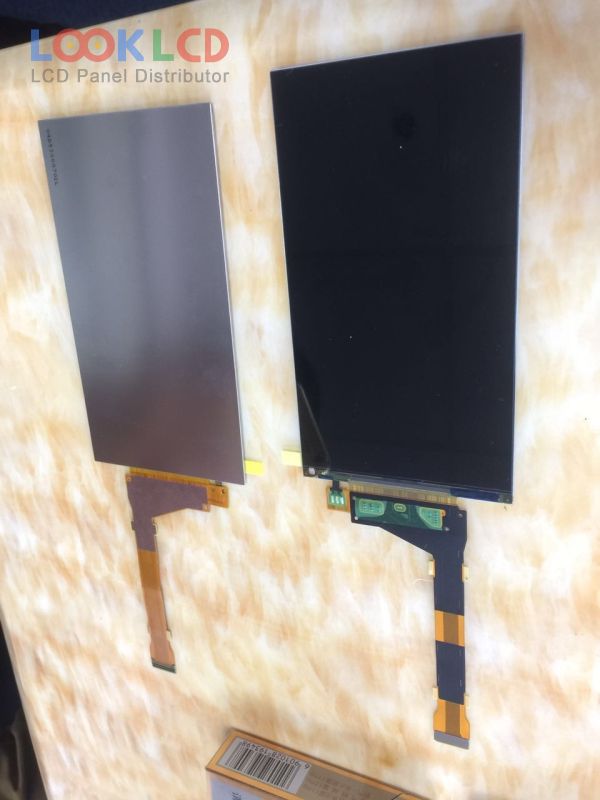

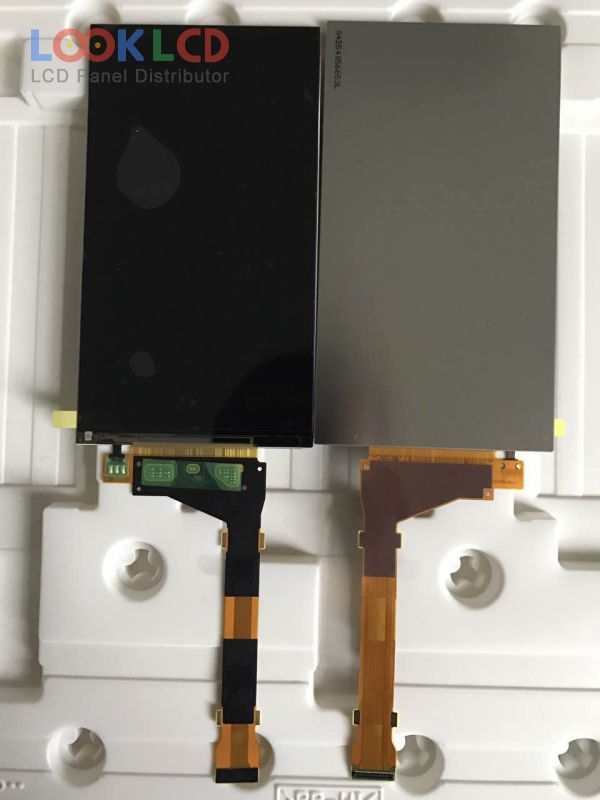

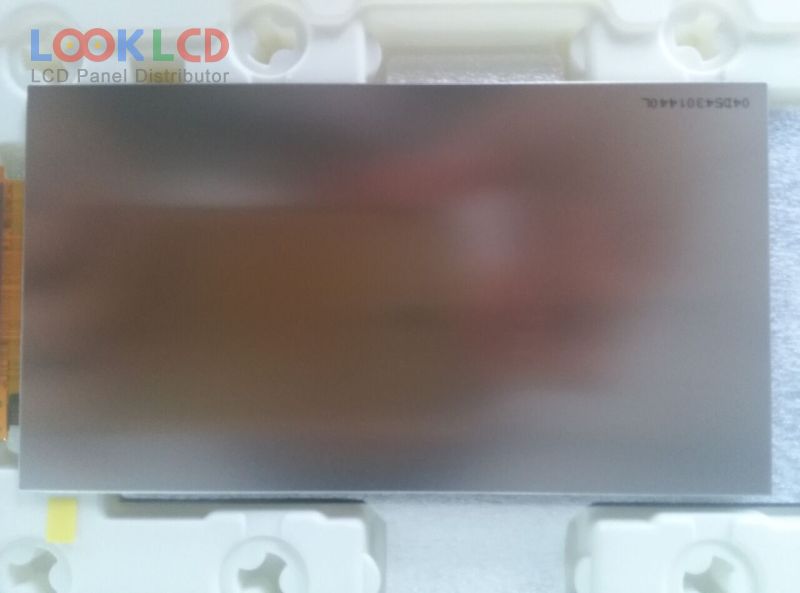

| Broj dijela | LS055R1SX04 |
| Marka | SHARP |
| Veličina | 5.5 |
| Primjena | MPH |
| Rezolucija | 1440×2560 |
| Sastav | LCM |
| Svjetlina | 450 |
| CR | 1300:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | MIPI |
| marka panela | SHARP |
| panelni model | LS055R1SX04 |
| vrsta panela | CG-Silicon , LCM |
| veličina ploče | 5.5 inch |
| rezolucija | 1440(RGB)×2560 , Quad-HD |
| način prikaza | New Mode2, Normally Black, Transmissive |
| aktivno područje | 68.04×120.96 mm |
| obris | 70.94×128.49×1.45 mm |
| površinski | |
| svjetlina | 450 cd/m² (Typ.) |
| omjer kontrasta | 1300:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193170% |
| vrijeme odziva | 35 (Max.)(Tr+Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 8S2PWLEDWithout Driver |
| signalno sučelje | MIPI (2 ch, 4 data lanes), 50 pins |
| ulazni napon | 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN) |
| primjena | MPH |
