| Broj dijela | LQ315T3LZ23 |
| Marka | SHARP |
| Veličina | 31.5 |
| Primjena | LCTV |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 500 |
| CR | 800:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | SHARP |
| panelni model | LQ315T3LZ23 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 31.5 inch |
| rezolucija | 1366(RGB)×768 , WXGA |
| način prikaza | Normally Black, Transmissive |
| aktivno područje | 697.685×392.256 mm |
| obris | 780×450 mm |
| površinski | Antiglare (Haze 23%), Hard coating (2H), Antireflection |
| svjetlina | 500 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193173% |
| vrijeme odziva | 12/12 (Typ.)(Tr/Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |

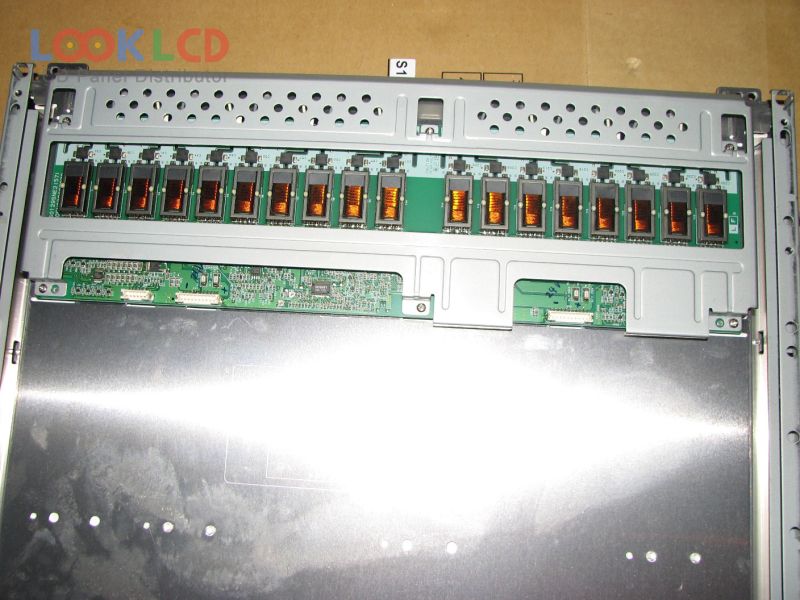

| tip svjetiljke | 18 pcsCCFLEmbedded (Inverter) |
| signalno sučelje | LVDS (1 ch, 8-bit), 37 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | LCTV |
