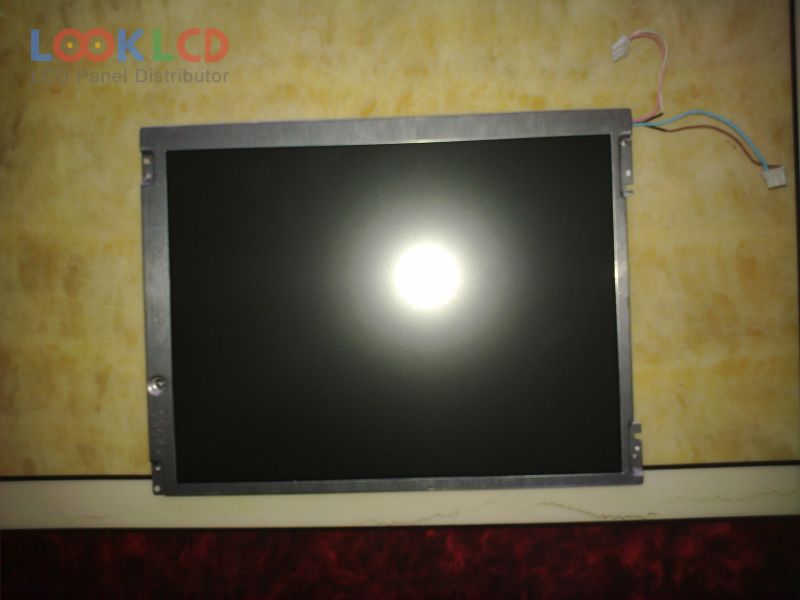

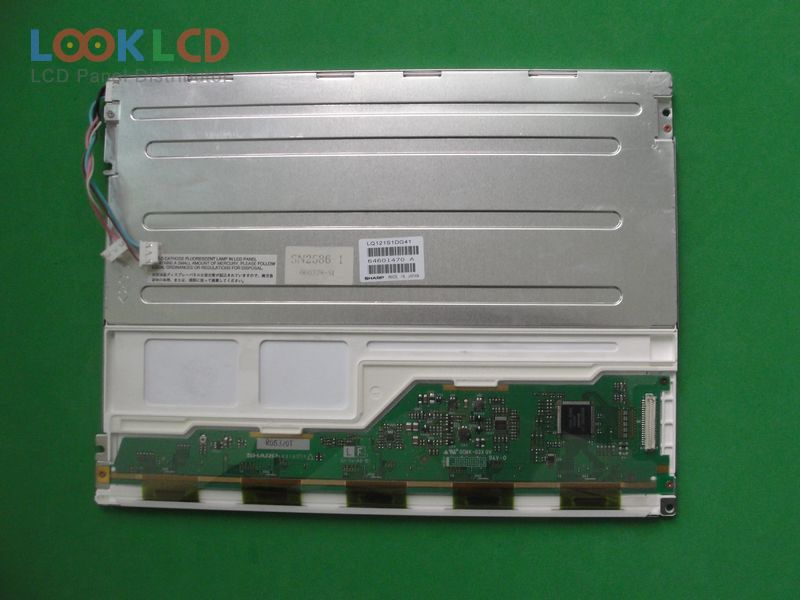

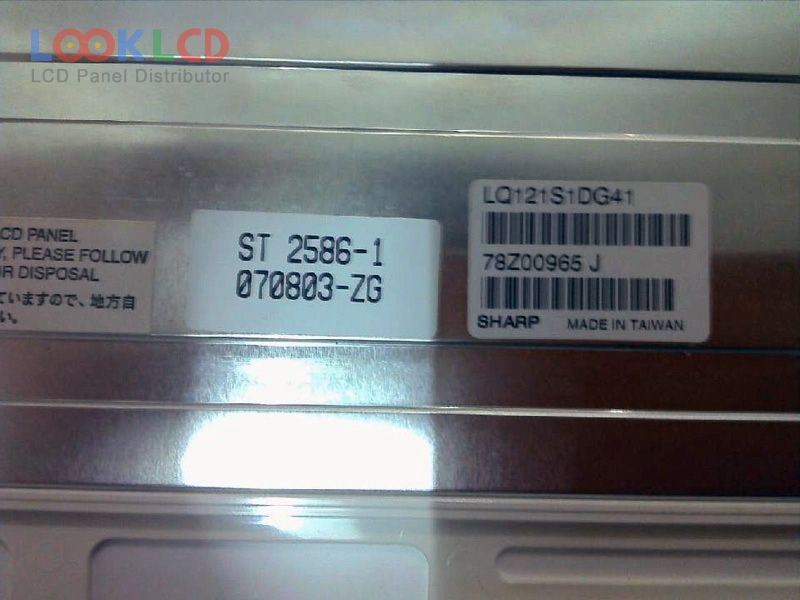

| Broj dijela | LQ121S1DG41 |
| Marka | SHARP |
| Veličina | 12.1 |
| Primjena | IA |
| Rezolucija | 800×600 |
| Sastav | LCM |
| Svjetlina | 370 |
| CR | 450:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | TTL |
| marka panela | SHARP |
| panelni model | LQ121S1DG41 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 12.1 inch |
| rezolucija | 800(RGB)×600 , SVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 246×184.5 mm |
| obris | 276×209×11 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 370 cd/m² (Typ.) |
| omjer kontrasta | 450:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 10/25 (Typ.)(Tr/Td) |
| kut gledanja | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 2 pcsCCFLWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit), 41 pins |
| ulazni napon | 3.3/5.0V (Typ.)(VCC) |
| rohs: | |
| primjena | IA |
