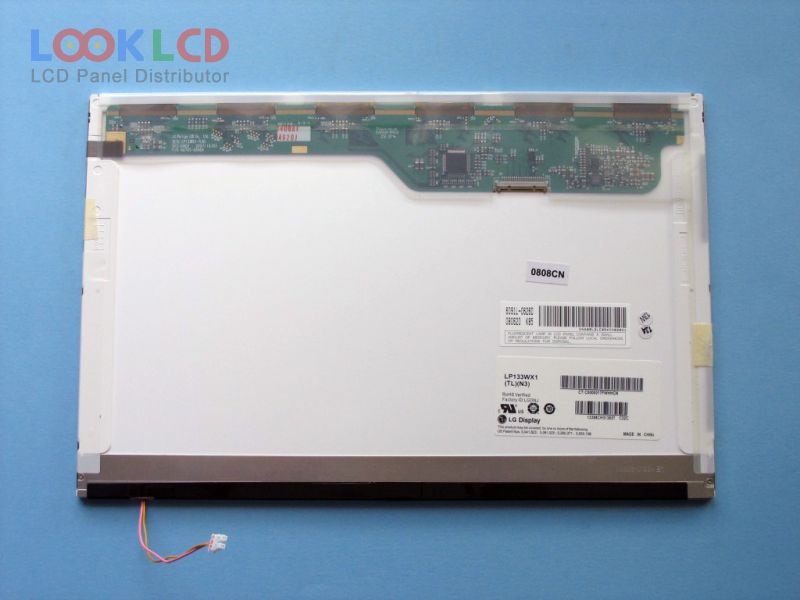

| Broj dijela | LP133WX1-TLN3 |
| Marka | LG Display |
| Veličina | 13.3 |
| Primjena | NBPC |
| Rezolucija | 1280×800 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 400:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | LG.Philips LCD |
| panelni model | LP133WX1-TLN3 5 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 13.3 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 286.08×178.8 mm |
| obris | 299×195×5.5 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |

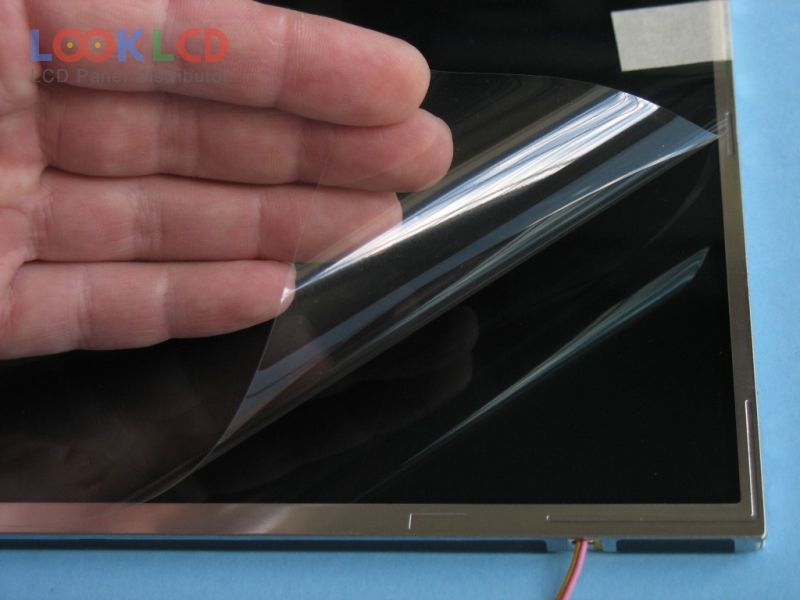

| površinski | Glare (Haze 0%), Hard coating (3H), Antireflection |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193145% |
| vrijeme odziva | 25 (Typ.)(Tr+Td) |
| kut gledanja | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 20 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
