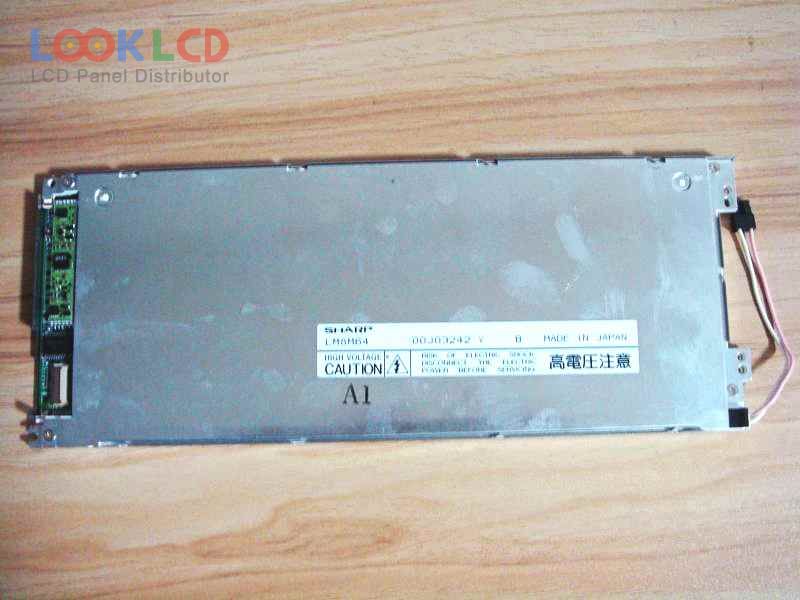

| Broj dijela | LM8M64 |
| Marka | SHARP |
| Veličina | 8.1 |
| Primjena | IA |
| Rezolucija | 640×240 |
| Sastav | LCM |
| Svjetlina | 80 |
| CR | 50:1 |
| Boje | Color |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | Parallel Data |
| marka panela | SHARP |
| panelni model | LM8M64 |
| vrsta panela | CSTN-LCD , LCM |
| veličina ploče | 8.1 inch |
| rezolucija | 640(RGB)×240 , HVGA |
| način prikaza | STN, Normally Black, Transmissive |
| aktivno područje | 191.98×71.98 mm |
| obris | 225.4×87.4 mm |
| površinski | |
| svjetlina | 80 cd/m² (Typ.) |
| omjer kontrasta | 50:1 (Typ.) |
| boje prikaza | Color |
| vrijeme odziva | 270/80 (Typ.)(Tr/Td) |
| kut gledanja | |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | Parallel Data (8-bit), 20 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
| A081VW01 V0 | AUO | 8.1 | 800×300 |
| EL640.480-AG1 ET CC | Lumineq | 8.1 | 640×480 |
| LM081HB1T01B | SHARP | 8.1 | 640×240 |
| LM80C209 | SHARP | 11.3 | 800×600 |
| LM8M64 | SHARP | 8.1 | 640×240 |
| LM8V301 | SHARP | 7.7 | 640×480 |
| LM8V302 | SHARP | 7.7 | 640×480 |
| LM8V302H | SHARP | 7.7 | 640×480 |
| LM8V31 | SHARP | 7.7 | 640×480 |
| LM8V311 | SHARP | 7.7 | 640×480 |
| AM-1280800N2TZQW-00H | AMPIRE | 10.1 | 1280×800 |
| AM-320240N1TMQW-T30H-D(R) | AMPIRE | 5.7 | 320×240 |
| DLC1500AMG-1 | Other | 15.0 | 1024×768 |
| DLF1095 | LiteMax | 10.4 | 1024×768 |
| G070VVN01.0 | AUO | 7.0 | 800×480 |
| G133I1-L01 | Innolux | 13.3 | 1280×800 |
| LQ104S1DG34 | SHARP | 10.4 | 800×600 |
| LQ9D01C | SHARP | 8.4 | 640×480 |
| PM070WL4 | E Ink | 7.0 | 800×480 |
| TX31D32VM2AAA | KOE | 12.1 | 800×600 |
