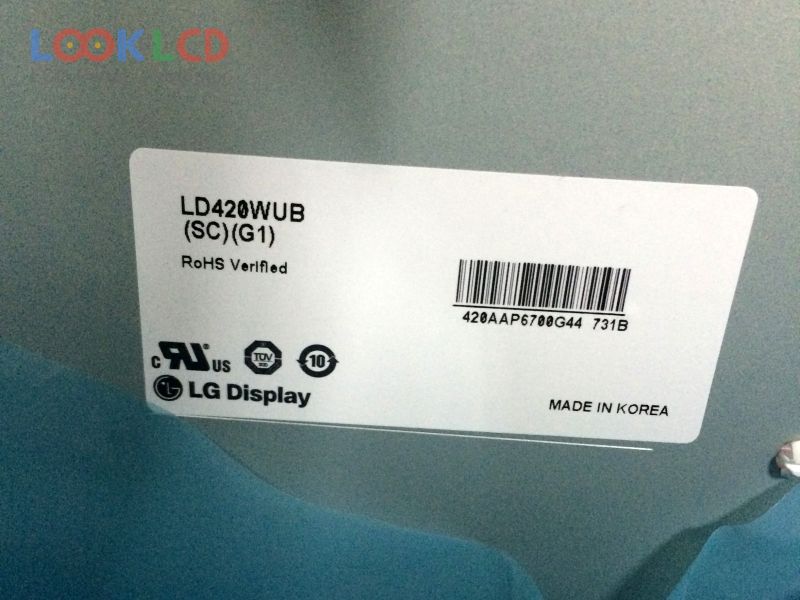

| Broj dijela | LD420WUB-SCG1 |
| Marka | LG Display |
| Veličina | 42 |
| Primjena | PID |
| Rezolucija | 1920×1080 |
| Sastav | LCM |
| Svjetlina | 500 |
| CR | 1200:1 |
| Boje | 16.7M/1.06B |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | LG Display |
| panelni model | LD420WUB-SCG1 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 42 inch |
| rezolucija | 1920(RGB)×1080 , FHD |
| način prikaza | S-IPS, Normally Black, Transmissive |
| aktivno područje | 930.24×523.26 mm |
| obris | 956.4×549.4×54.5 mm, Videowall Seam 26.2 mm |
| površinski | Antiglare (Haze 10%), Hard coating (3H) |
| svjetlina | 500 cd/m² (Typ.) |
| omjer kontrasta | 1200:1 (Typ.) |
| boje prikaza | 16.7M/1.06B (8-bit / 8-bit + FRC) |
| vrijeme odziva | 10 (Typ.)(G to G) |
| kut gledanja | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | CCFLEmbedded (Inverter) |
| signalno sučelje | LVDS (2 ch, 8/10-bit), 51 pins |
| ulazni napon | 12.0V (Typ.) |
| primjena | PID |
