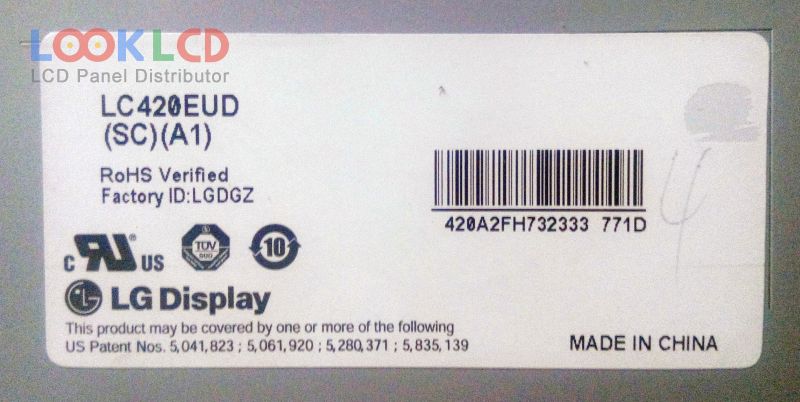

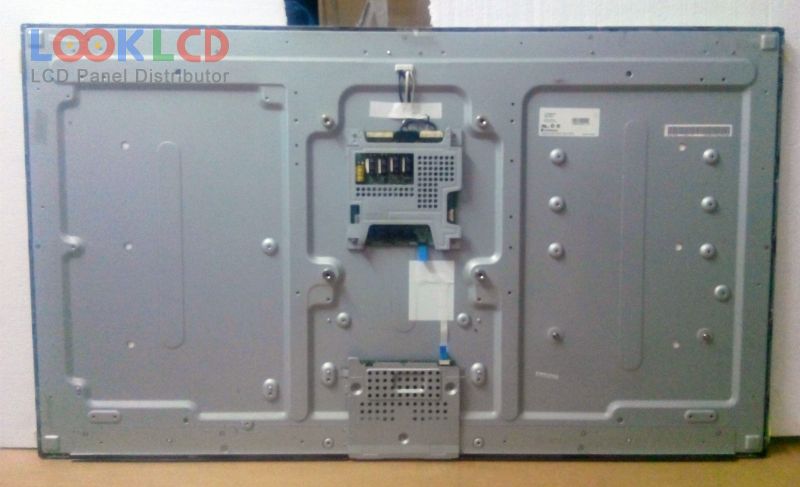

| Broj dijela | LC420EUD-SCA1 |
| Marka | LG Display |
| Veličina | 42 |
| Primjena | LCTV |
| Rezolucija | 1920×1080 |
| Sastav | LCM |
| Svjetlina | 450 |
| CR | 1400:1 |
| Boje | 16.7M/1.06B |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | LG Display |
| panelni model | LC420EUD-SCA1 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 42 inch |
| rezolucija | 1920(RGB)×1080 , FHD |
| način prikaza | S-IPS, Normally Black, Transmissive |
| aktivno područje | 930.24×523.26 mm |
| obris | 973.2×566.2 mm |
| površinski | Antiglare (Haze 10%), Hard coating (3H) |
| svjetlina | 450 cd/m² (Typ.) |
| omjer kontrasta | 1400:1 (Typ.) |
| boje prikaza | 16.7M/1.06B (8-bit / 8-bit + Dithering), CIE193172% |
| vrijeme odziva | 5 (Typ.)(G to G), 8 (Typ.)(MPRT) |
| kut gledanja | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 120Hz+120Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (4 ch, 8/10-bit), 100 pins |
| ulazni napon | 12.0V (Typ.) |
| primjena | LCTV |
