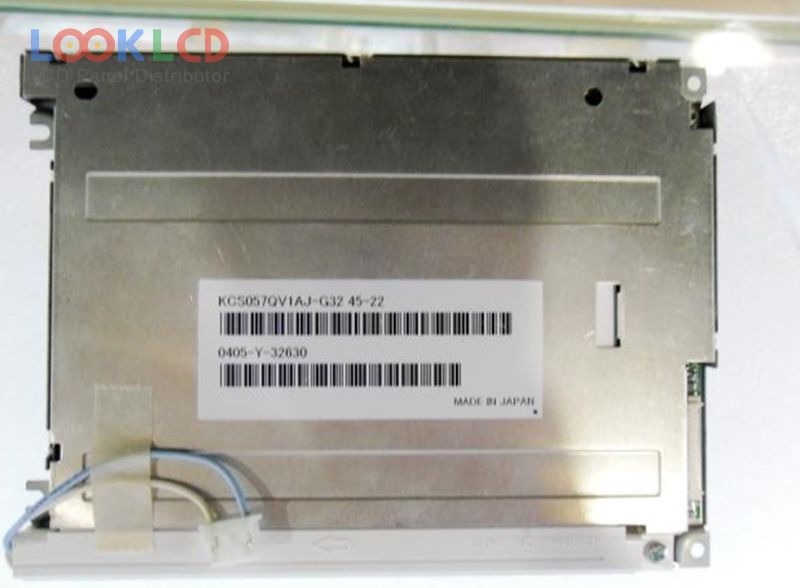

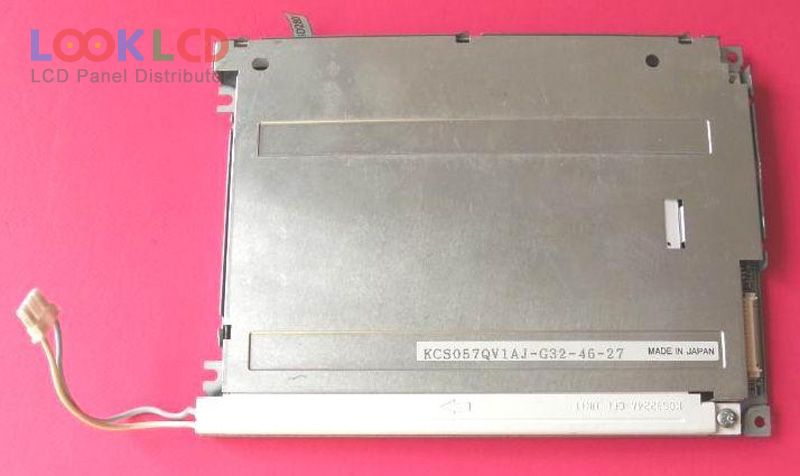

| Broj dijela | KCS057QV1AJ-G32 |
| Marka | Kyocera |
| Veličina | 5.7 |
| Primjena | IA |
| Rezolucija | 320×240 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 40:1 |
| Boje | Color |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | Parallel Data |
| marka panela | Kyocera |
| panelni model | KCS057QV1AJ-G32 |
| vrsta panela | CSTN-LCD , LCM |
| veličina ploče | 5.7 inch |
| rezolucija | 320(RGB)×240 , QVGA |
| način prikaza | STN, Normally Black, Transmissive |
| aktivno područje | 115.2×86.4 mm |
| obris | 154.6×114.8×9 mm |
| površinski | Glare (Haze 0%) |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 40:1 (Typ.) |
| boje prikaza | Color |
| vrijeme odziva | 220/110 (Typ.)(Tr/Td) |
| kut gledanja | 50/50/40/50 (Typ.)(CR≥2)(L/R/U/D) |
| frekvencija | 75Hz |
| tip svjetiljke | 1 pcsCCFLOptional |

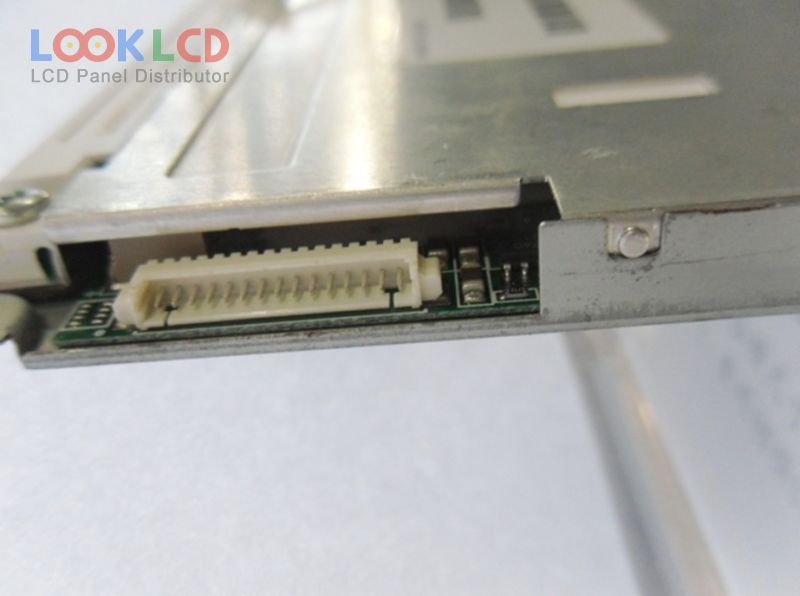

| signalno sučelje | Parallel Data (8-bit), 15 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | IA |
