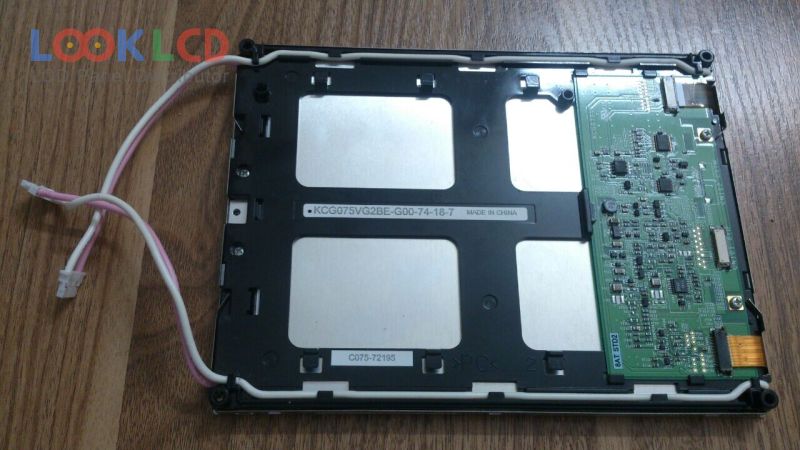

| Broj dijela | KCG075VG2BE-G00 |
| Marka | Kyocera |
| Veličina | 7.5 |
| Primjena | IA |
| Rezolucija | 640×480 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 30:1 |
| Boje | Color |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | Parallel Data |
| marka panela | Kyocera |
| panelni model | KCG075VG2BE-G00 |
| vrsta panela | CSTN-LCD , LCM |
| veličina ploče | 7.5 inch |
| rezolucija | 640(RGB)×480 , VGA |
| način prikaza | STN, Normally Black, Transmissive |
| aktivno područje | 151.68×113.76 mm |
| obris | 184×139.8×13.2 mm |
| površinski | Glare (Haze 0%) |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 30:1 (Typ.) |
| boje prikaza | Color |
| vrijeme odziva | 270/280 (Typ.)(Tr/Td) |
| kut gledanja | 40/40/20/40 (Typ.)(CR≥2)(L/R/U/D) |
| frekvencija | 75Hz |
| tip svjetiljke | 2 pcsCCFLOptional |
| signalno sučelje | Parallel Data (8-bit), 20 pins |
| ulazni napon | 3.3/5.0V (Typ.)(VDD) |
| rohs: | |
| primjena | IA |
