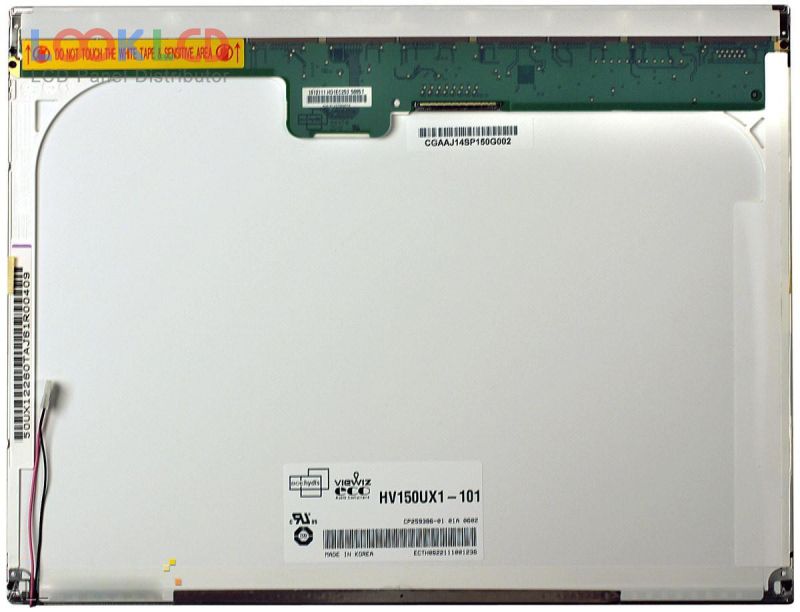

| Broj dijela | HV150UX1-101 |
| Marka | HYDIS |
| Veličina | 15.0 |
| Primjena | NBPC |
| Rezolucija | 1600×1200 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | BOE HYDIS |
| panelni model | HV150UX1-101 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.0 inch |
| rezolucija | 1600(RGB)×1200 , UXGA |
| način prikaza | FFS, Normally Black, Transmissive |
| aktivno područje | 304.8×228.6 mm |
| obris | 317.3×242×6.5 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Antiglare (Haze 45%), Hard coating (2H), Antireflection |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 30/30 (Typ.)(Tr/Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (2 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
