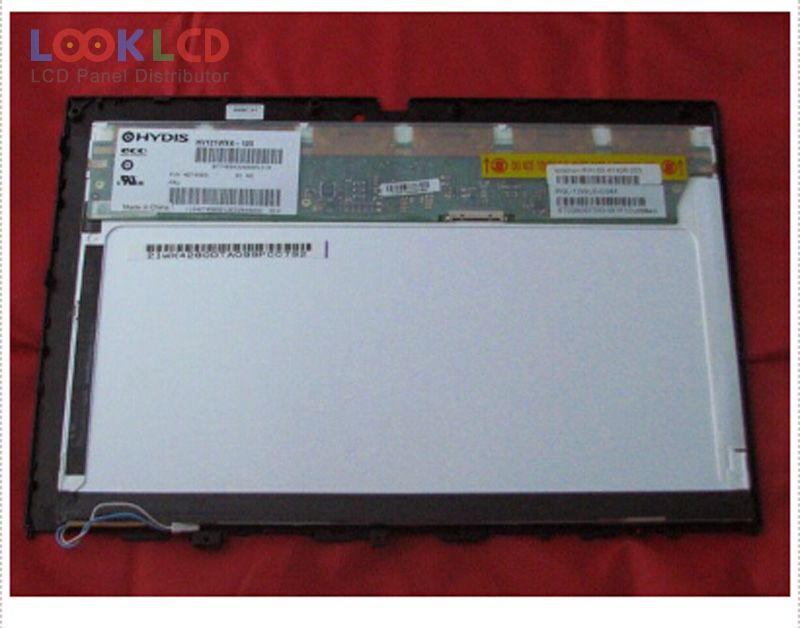

| Broj dijela | HV121WX4-120 |
| Marka | HYDIS |
| Veličina | 12.1 |
| Primjena | PAD |
| Rezolucija | 1280×800 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | BOE HYDIS |
| panelni model | HV121WX4-120 2 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 12.1 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | AFFS, Normally Black, Transmissive |
| aktivno područje | 261.12×163.2 mm |
| obris | 275.8×178×6.7 mm |
| površinski | Antireflection |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 28/28 (Typ.)(Tr/Td) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 20 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | PAD |
