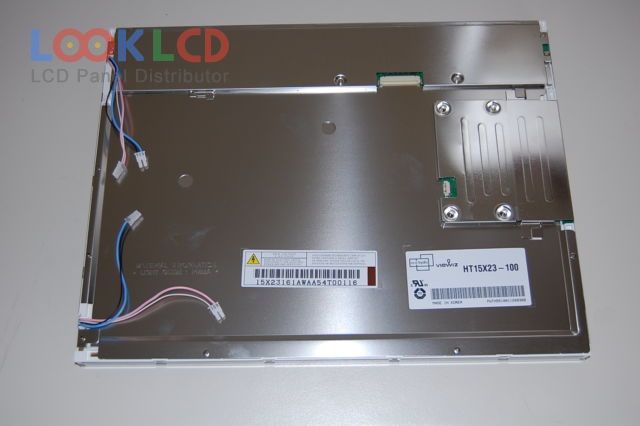

| Broj dijela | HT15X23-100 |
| Marka | HYDIS |
| Veličina | 15.0 |
| Primjena | DMPC |
| Rezolucija | 1024×768 |
| Sastav | LCM |
| Svjetlina | 280 |
| CR | 450:1 |
| Boje | 16.2M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | BOE HYDIS |
| panelni model | HT15X23-100 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.0 inch |
| rezolucija | 1024(RGB)×768 , XGA |
| način prikaza | AFFS, Normally Black, Transmissive |
| aktivno područje | 304.128×228.096 mm |
| obris | 331.6×254.7 mm |
| površinski | Antiglare (Haze 25%), Hard coating (3H) |
| svjetlina | 280 cd/m² (Typ.) |
| omjer kontrasta | 450:1 (Typ.) |
| boje prikaza | 16.2M (6-bit + FRC), CIE193165% |
| vrijeme odziva | 40 (Typ.)(Tr+Td) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 4 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 8-bit), 20 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | DMPC |
