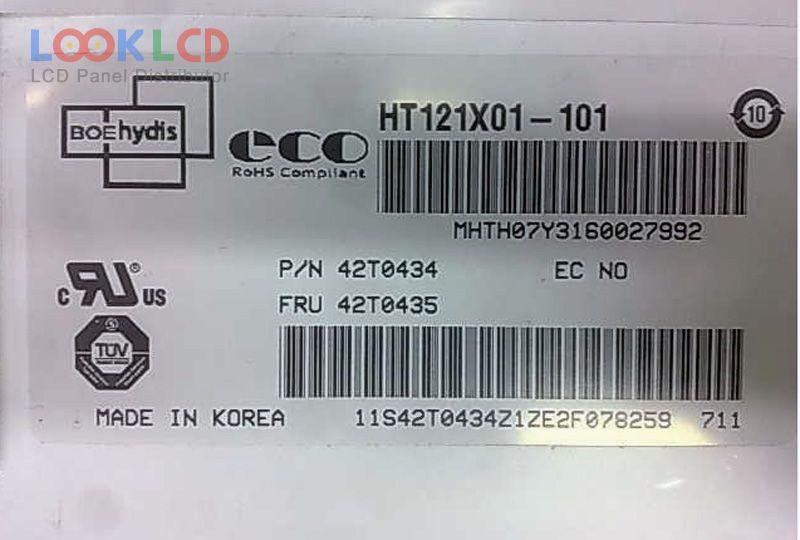

| Broj dijela | HT121X01-101 |
| Marka | HYDIS |
| Veličina | 12.1 |
| Primjena | NBPC |
| Rezolucija | 1024×768 |
| Sastav | LCM |
| Svjetlina | 150 |
| CR | 300:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | BOE HYDIS |
| panelni model | HT121X01-101 6 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 12.1 inch |
| rezolucija | 1024(RGB)×768 , XGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 245.76×184.32 mm |
| obris | 261×198×5 mm |
| površinski | |
| svjetlina | 150 cd/m² (Typ.) |
| omjer kontrasta | 300:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 10/20 (Typ.)(Tr/Td) |
| kut gledanja | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 20 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
