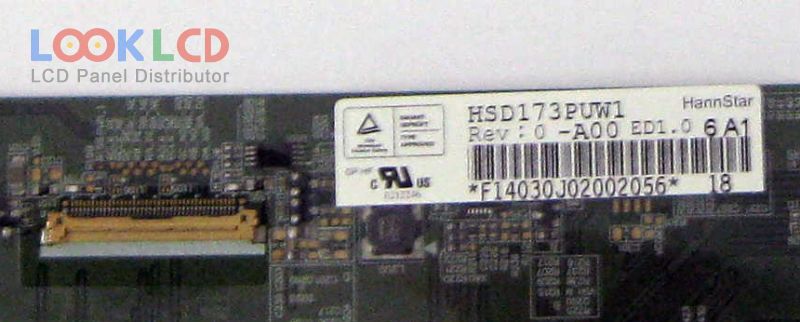

| Broj dijela | HSD173PUW1-A00 |
| Marka | HannStar |
| Veličina | 17.3 |
| Primjena | NBPC |
| Rezolucija | 1920×1080 |
| Sastav | LCM |
| Svjetlina | 220 |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | HannStar |
| panelni model | HSD173PUW1-A00 2 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 17.3 inch |
| rezolucija | 1920(RGB)×1080 , FHD |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 381.888×214.812 mm |
| obris | 398.1×232.8×5.8 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Glare (Haze 0%), Hard coating (3H) |
| svjetlina | 220 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193160% |
| vrijeme odziva | 2.4/5.6 (Typ.)(Tr/Td) |
| kut gledanja | 80/80/60/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (2 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
| B173HAN01.0 | AUO | 17.3 | 1920×1080 |
| B173HTN01.1 | AUO | 17.3 | 1920×1080 |
| HSD173PUW1-A | HannStar | 17.3 | 1920×1080 |
| HSD173PUW1-A00 | HannStar | 17.3 | 1920×1080 |
| HSD173PUW1-A01 | HannStar | 17.3 | 1920×1080 |
| LP173WD1-TLG2 | LG Display | 17.3 | 1600×900 |
| LP173WF4-SPD1 | LG Display | 17.3 | 1920×1080 |
| LTN173HT02-D02 | Samsung | 17.3 | 1920×1080 |
| LTN173KT02-W01 | Samsung | 17.3 | 1600×900 |
| BT140GW02 V.9 | Innolux | 14.0 | 1366×768 |
| FLC31SVC6S-17 | Fujitsu | 12.1 | 800×600 |
| HSD110PHW1-A00 | HannStar | 11.0 | 1366×768 |
| LP104V2 | LG Display | 10.4 | 640×480 |
| LP140WH2-TLEA | LG Display | 14.0 | 1366×768 |
| LP140WH6-TJA1 | LG Display | 14.0 | 1366×768 |
| LP156WH4-TLB1 | LG Display | 15.6 | 1366×768 |
| LQ106K1LA01C | SHARP | 10.6 | 1280×768 |
| LTN154P1-L01 | Samsung | 15.4 | 1680×1050 |
| LTN156AT35-W01 | Samsung | 15.6 | 1366×768 |
