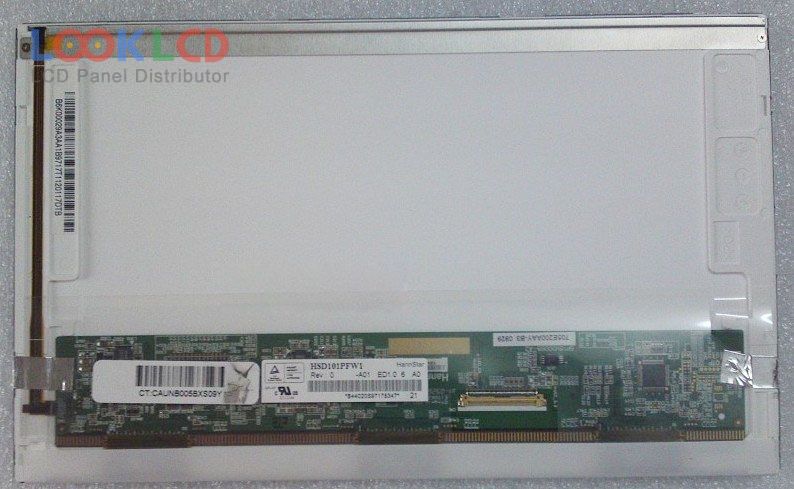

| Broj dijela | HSD101PFW1-A01 |
| Marka | HannStar |
| Veličina | 10.1 |
| Primjena | DPF |
| Rezolucija | 1024×576 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | HannStar |
| panelni model | HSD101PFW1-A01 5 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.1 inch |
| rezolucija | 1024(RGB)×576 , WSVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 222.72×125.28 mm |
| obris | 235×143×5.2 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193150% |
| vrijeme odziva | 2/6 (Typ.)(Tr/Td) |
| kut gledanja | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 27 pcsWLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | DPF |
