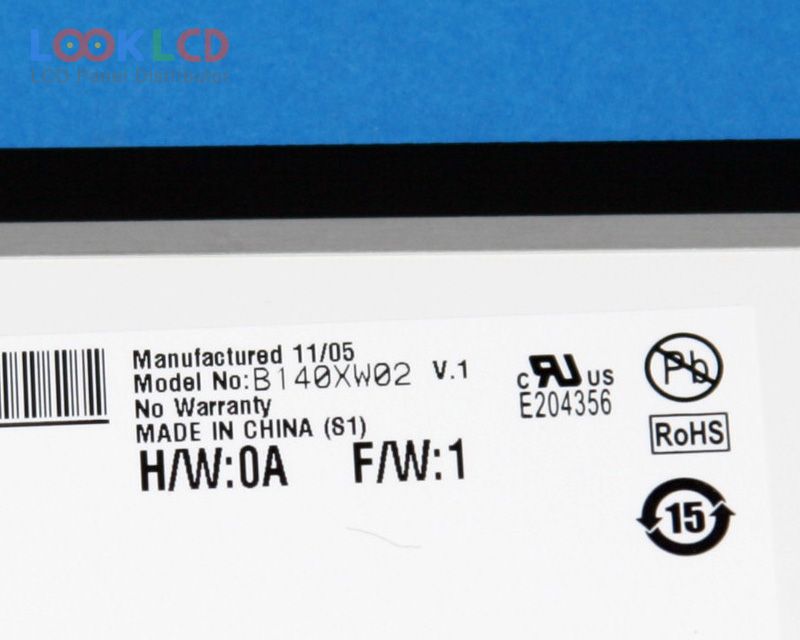

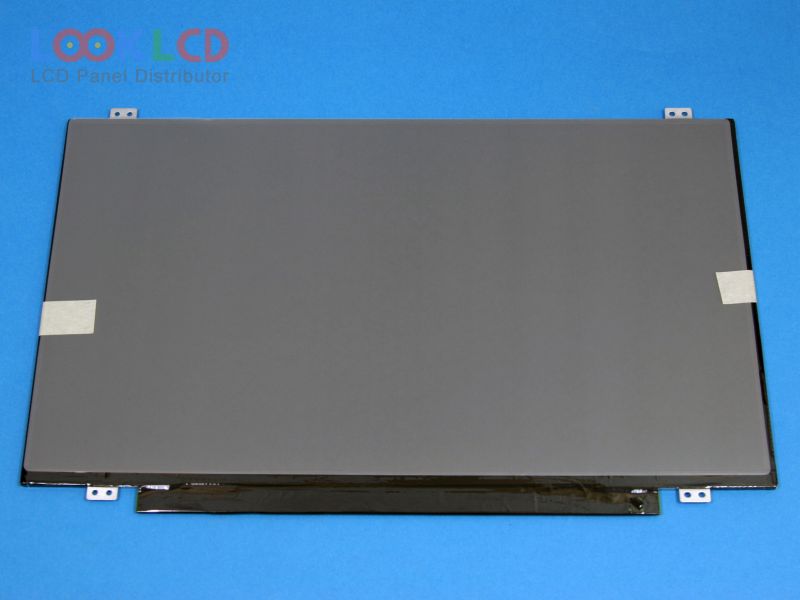

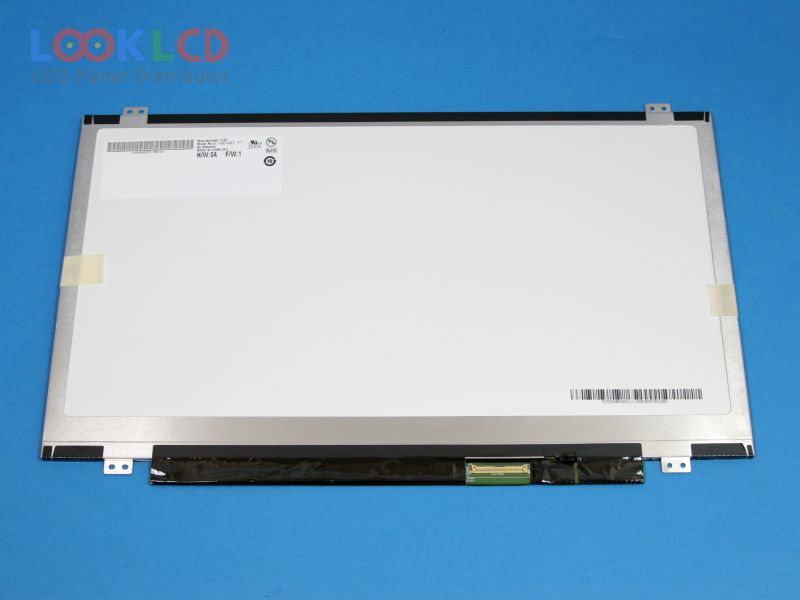

| Broj dijela | B140XW02 V1 |
| Marka | AUO |
| Veličina | 14.0 |
| Primjena | NBPC |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | AUO |
| panelni model | B140XW02 V1 8 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 14.0 inch |
| rezolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 309.399×173.952 mm |
| obris | 320.9×205.6×3.6 mm |
| stil oblika | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| površinski | Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.) |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193145% |
| vrijeme odziva | 8 (Typ.)(Tr+Td) |
| kut gledanja | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
| B140XTN01.3 | AUO | 14.0 | 1366×768 |
| B140XTN02.3 | AUO | 14.0 | 1366×768 |
| B140XTN02.4 | AUO | 14.0 | 1366×768 |
| B140XTN03.2 | AUO | 14.0 | 1366×768 |
| B140XTN03.4 | AUO | 14.0 | 1366×768 |
| B140XTN03.9 | AUO | 14.0 | 1366×768 |
| B140XW01 V0 | AUO | 14.0 | 1366×768 |
| B140XW01 V9 | AUO | 14.0 | 1366×768 |
| B140XW02 V2 | AUO | 14.0 | 1366×768 |
| B140XW03 V0 | AUO | 14.0 | 1366×768 |
| B133EW03 V2 | AUO | 13.3 | 1280×800 |
| B156HW01 V4 | AUO | 15.6 | 1920×1080 |
| B156XTK01.0 | AUO | 15.6 | 1366×768 |
| B173HW02 V1 | AUO | 17.3 | 1920×1080 |
| HSD150PX16-A | HannStar | 15.0 | 1024×768 |
| LT131DEVHV00 | TOSHIBA | 13.1 | 1366×768 |
| LTN141XB-L04 | Samsung | 14.1 | 1024×768 |
| LTN156AT34-D01 | Samsung | 15.6 | 1366×768 |
| N140BGK-L33 | Innolux | 14.0 | 1366×768 |
| N156BGE-E41 | Innolux | 15.6 | 1366×768 |
