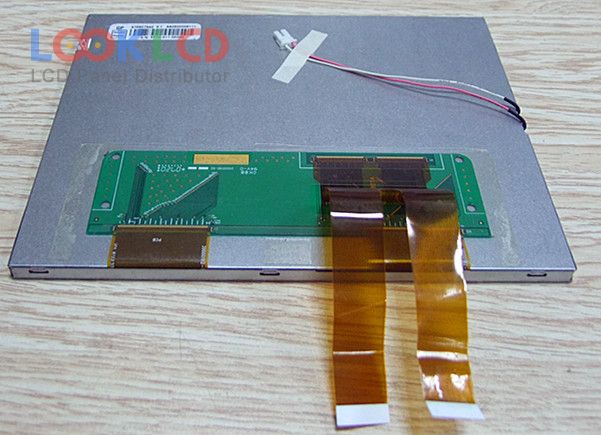

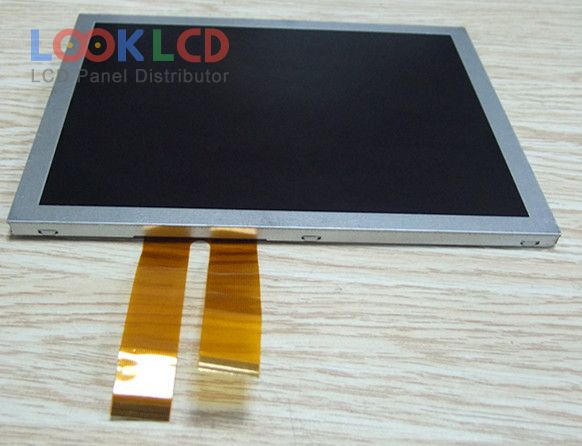

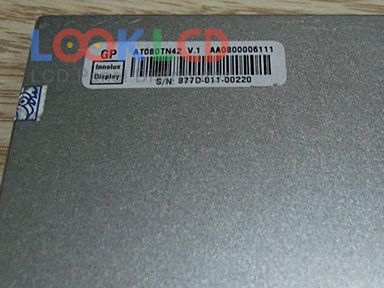

AT080TN42 V.1

AT080TN42 V.1
AT080TN42 V.1
AT080TN42 V.1
AT080TN42 V.1 thumb AT080TN42 V.1 thumb AT080TN42 V.1 thumb
Marka
Innolux
Veličina
8.0
Primjena
CNS
Rezolucija
800×600
Sastav
LCM
Svjetlina
250
CR
500:1
Boje
262K
Pozadinsko osvjetljenje
WLED
Sučelje
TTL
In Stock
493
Tehnički podaci

Broj dijela AT080TN42 V.1
MarkaInnolux
Veličina8.0
PrimjenaCNS
Rezolucija800×600
SastavLCM
Svjetlina250
CR500:1
Boje262K
Pozadinsko osvjetljenjeWLED
SučeljeTTL
marka panelaINNOLUX
panelni modelAT080TN42 V.1
vrsta panela a-Si TFT-LCD , LCM
veličina ploče8.0 inch
rezolucija800(RGB)×600 , SVGA
način prikazaTN, Normally White, Transmissive
aktivno područje162×121.5 mm
obris183×141 mm
površinskiAntiglare
svjetlina250 cd/m² (Typ.)
omjer kontrasta500:1 (Typ.)
boje prikaza262K (6-bit)
vrijeme odziva10/15 (Typ.)(Tr/Td)
kut gledanja70/70/50/70 (Typ.)(CR≥10)(L/R/U/D)
tip svjetiljke3S9PWLEDWithout Driver
signalno sučeljeParallel RGB (1 ch, 6-bit), 60 pins
ulazni napon3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
rohs:
primjenaCNS
