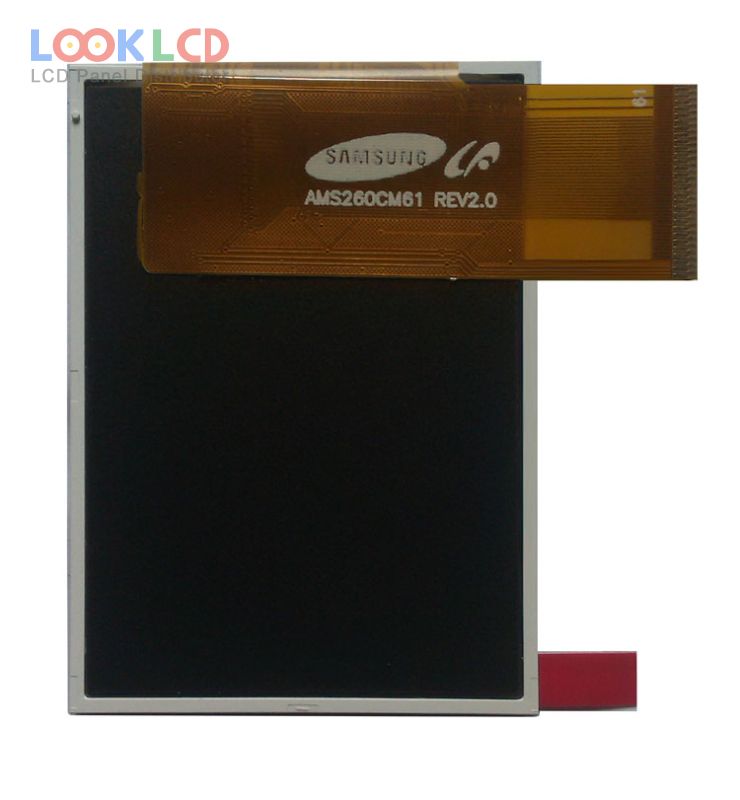

| Broj dijela | AMS260CM61 |
| Marka | Samsung |
| Veličina | 2.6 |
| Primjena | MPH |
| Rezolucija | 240×320 |
| Sastav | OLED |
| Svjetlina | 200 |
| CR | 10000:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | self |
| Sučelje | CPU/RGB/SPI |
| marka panela | SAMSUNG SDI |
| panelni model | AMS260CM61 |
| vrsta panela | AM-OLED , OLED |
| veličina ploče | 2.6 inch |
| rezolucija | 240(RGB)×320 , QVGA |
| aktivno područje | 40.32×54.08 mm |
| obris | 44.7×62.2×2.15 mm |
| površinski | |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 10000 : 1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193173% |
| kut gledanja | |
| vozač ic | COG Built-in S6E63D3 |
| signalno sučelje | 8/9/16/18-bit 6800/8080 parallel, 6/16/18-bit RGB, SPI, 61 pins |
| ulazni napon | 1.8/2.8V (Typ.)(VDD3/VCI) |
| primjena | MPH |
